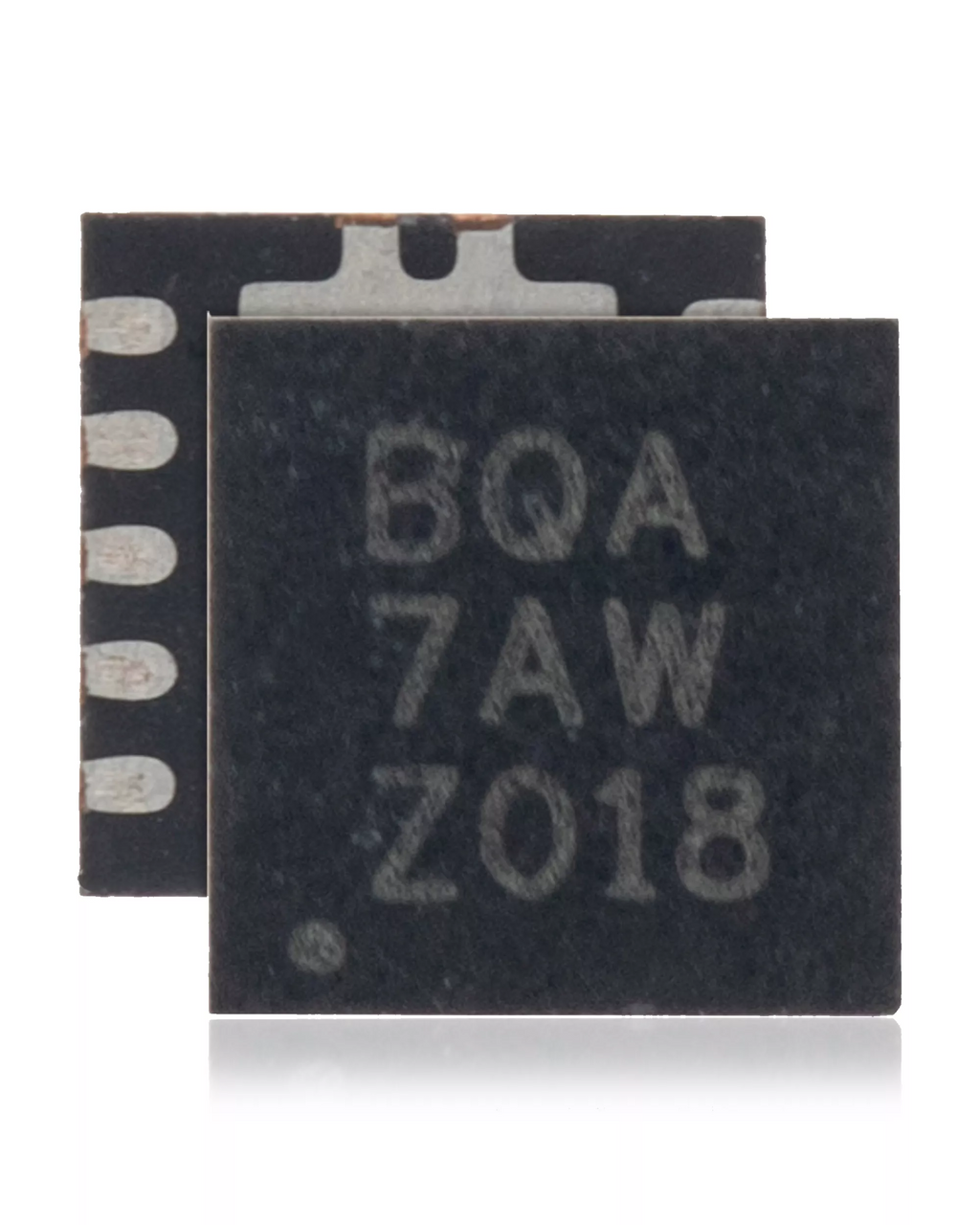

DC-DC Converter and Switching Regulator IC TPS62510DRCT / TPS62510DRCR for MacBook (BQA SON-10 Pin)

DC to DC Converter & Switching Regulator IC – TPS62510 (BQA-SON 10 Pin)

Compatibility Check:

• MacBook Air 13" A1932 (2019)
• MacBook Air 13" A1932 (2018)
• MacBook Air 13" A1466 (2017)
• MacBook Air 13" A1466 (2015)
• MacBook Air 13" A1466 (2014)
• MacBook Air 13" A1466 (2013)
• MacBook Air 13" A1466 (2012)
• MacBook Air 13" A1369 (2011)
• MacBook Air 13" A1369 (2010)
• MacBook Air 13" A1304 (2009)
• MacBook Air 13" A1304 (2008)
• MacBook Air 13" A1237 (2008)
• MacBook Air 11" A1465 (2015)
• MacBook Air 11" A1465 (2014)
• MacBook Air 11" A1465 (2013)
• MacBook Air 11" A1465 (2012)
• MacBook Air 11" A1370 (2011)
• MacBook Air 11" A1370 (2010)
• MacBook Pro 13" A1989 (2018-2019)
• MacBook Pro 13" A1706 (2016-2017)
• MacBook Pro 13" A1708 (2016-2017)
• MacBook Pro 13" A1502 (2013-2015)
• MacBook Pro 13" A1425 (2012-2013)
• MacBook Pro 13" A1278 (2012)
• MacBook Pro 13" A1278 (2011)
• MacBook Pro 13" A1278 (2010)
• MacBook Pro 13" A1278 (2009)
• MacBook Pro 15" A1707 (2016-2017)
• MacBook Pro 15" A1398 (2015)
• MacBook Pro 15" A1286 (2012)
• MacBook Pro 15" A1286 (2011)
• MacBook Pro 15" A1286 (2010)
• MacBook Pro 15" A1286 (2009)
• MacBook Pro 15" A1286 (2008)
• MacBook Pro 17" A1297 (2011)
• MacBook Pro 17" A1297 (2010)
• MacBook Pro 17" A1297 (2009)
• MacBook Pro 15" A1260 (2008)
• MacBook Pro 13" A2289 (2020)
• MacBook Pro 13" A2251 (2020)
• MacBook Pro 13" A2159 (2019)
• MacBook Pro 15" A1398 (2012)
• MacBook Pro 15" A1398 (2013)
• MacBook Pro 15" A1398 (2014)
• MacBook Air 13" A2179 (2020)
• MacBook Retina 12" A1534 (2015-2017)
• MacBook Unibody 13" A1342 (2009-2010)
• MacBook Unibody 13" A1278 (2008-2009)

• High efficiency thanks to Pulse Width Modulation (PWM) at 1.5 MHz
• Stepless adjustment via PWM module objects
• Wide input voltage range 1.8 V – 3.8 V
• Automatic switch to power-saving mode at low load
• 10-pin BQA-SON package for compact PCB mounting

Technical Data:

• Pin Assignment: 10-pin BQA-SON
• Input Voltage: 1.8 V – 3.8 V
• Switching Frequency: 1.5 MHz (PWM)
• Efficiency: up to 90% in High-Efficiency mode
• Idle Current Consumption: very low thanks to automatic Low-Power mode

Scope of delivery:

• Single IC in 10-pin BQA-SON package

Installation Note: Installation of the IC requires precise soldering and PCB assembly. Observe the specified pin assignments and voltage/current limits to ensure a safe and functional installation.
