Base plate for DL200 / DL400 / DL400 Pro (4.0) (DL)

Base Plate for DL200 / DL400 / DL400 Pro (4.0) (DL)

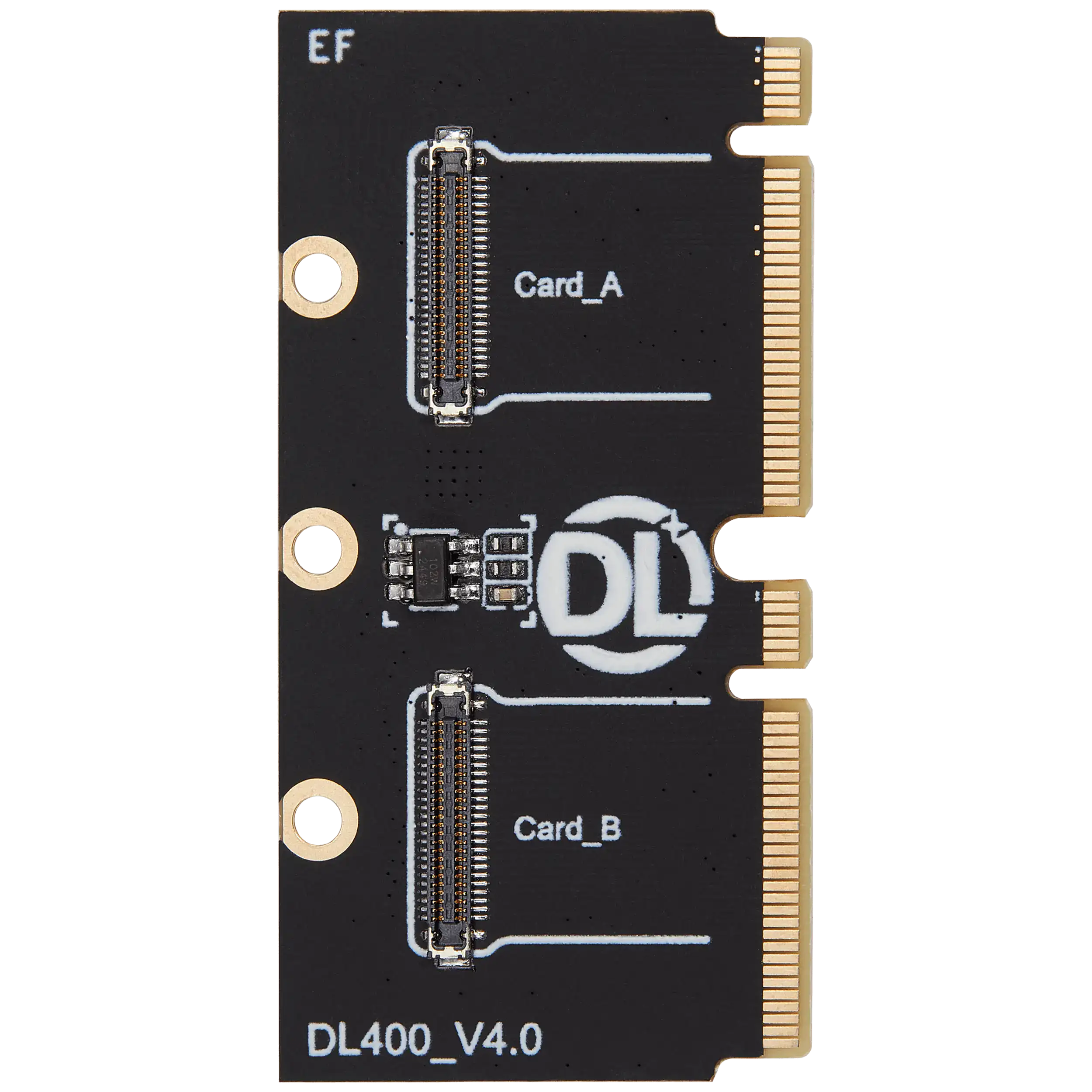

This base plate is designed as a spare part for the DL200, DL400, and DL400 Pro series (version 4.0) programming and testing devices. It is suitable for replacing a defective or worn circuit board and restores the full functionality of the repair equipment.

Compatibility

• Suitable for DL200
• Suitable for DL400
• Suitable for DL400 Pro (Version 4.0)

Key Advantages

• ✓ Robust construction for long-lasting use in the workshop
• ✓ Easy replacement of the existing base plate
• ✓ Precisely fitting for the mentioned DL model series
• ✓ High-quality circuit board design for precise work
• ✓ Compatible with suitable DL components and accessories

Please check before purchase

Ensure that the base plate is compatible with your exact device model (DL200, DL400, or DL400 Pro 4.0). A comparison of the connectors and the design with the existing plate is recommended.

Scope of Delivery

• 1x Base plate (circuit board) without additional accessories

Installation Note

Replacement should only be carried out by qualified personnel. Disconnect the device from the power supply before installation. Connect the contact points according to the manufacturer's specifications and perform a function test after installation.
